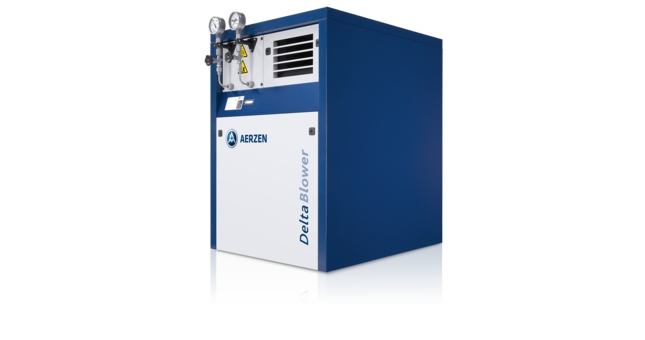

Biogas packaged unit – Delta Blower GM 3S … 50L
CATS:AERZEN, Positive Displacement Blowers
For biogas and biomethane applications
Premium technologies for the biogas sector – made by AERZEN.
Whether boosting the intake pressure of combined heat and power (CHP) engines and treatment plants for biogas (BGTP) or as an essential part of biogas injection plants (BGIP) for the compression of biomethane to inject into gas grids; AERZEN has the suitable blower or compressor for each application.
Specially designed for the biogas market, AERZEN biogas blowers of series GM ensure ultimate reliability and efficiency. The biogas blowers are available in a variety of different sizes. Due to the TÜV-certified explosion pressure resistance of 12 bar, these blowers may also be applied in processes with internal ATEX zone 1.
RANGES OF APPLICATION:
- Compression of biomethane and biogas, landfill gas, natural gas, CH-mixed gases etc.
- 9 sizes for volume flows between 30 m3/h and 2700 m3/h.
- Volume flow control by controlling rotating speed and bypass. Control range 0 – 100 %
- Elevated intake pressure: 0.5 bar g max.
- Discharge pressure: 1.0 bar g max.
